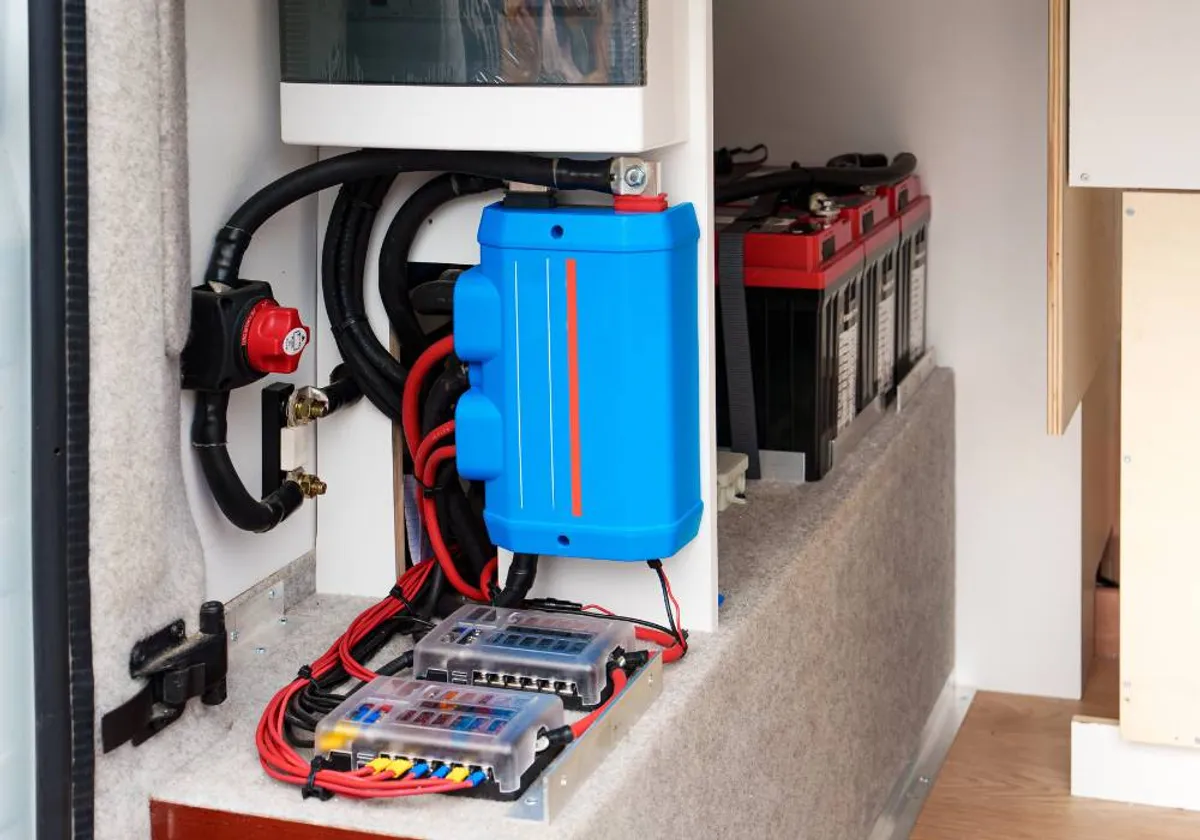

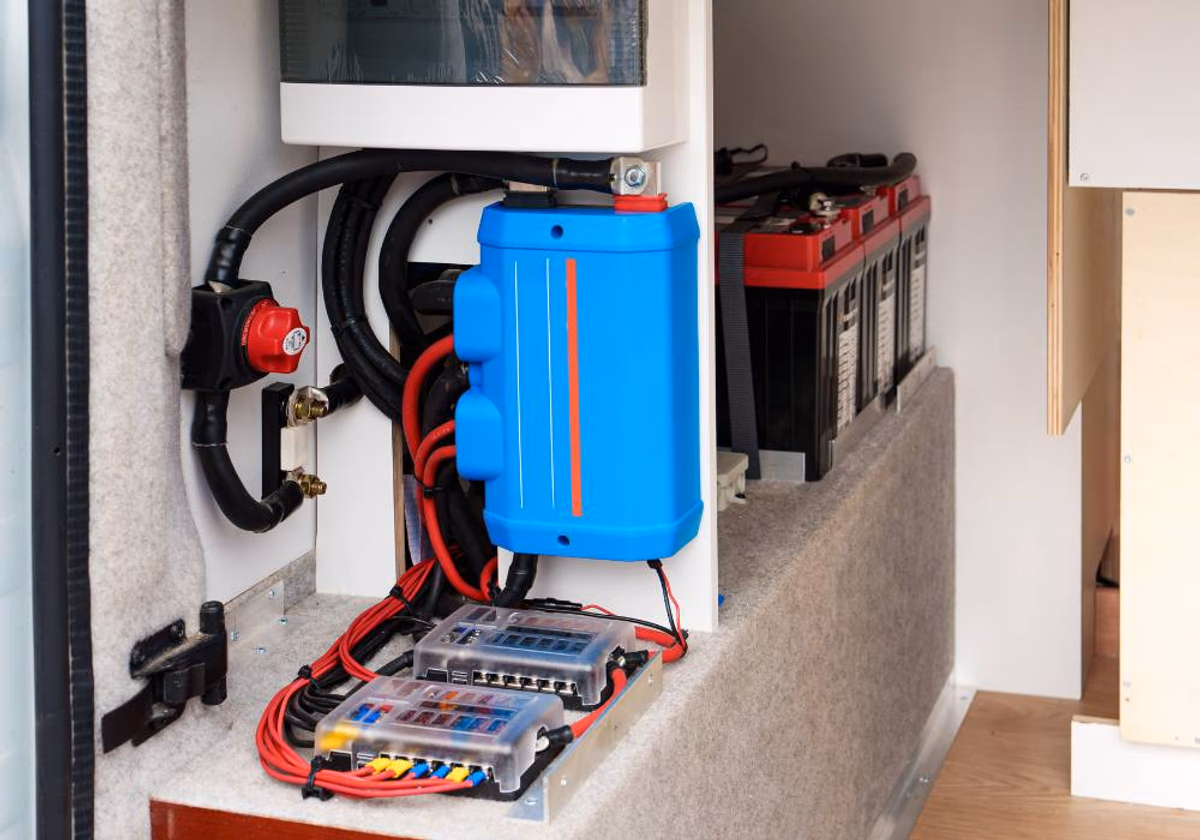

Getting started on your van conversion will feel daunting at first. Especially when you begin planning your electrical system. You might be looking at solar panels, van wire options, battery options, fuses, inverters, and other electrical items and tools for the first time in your life.

We're not going to overwhelm you by writing about circuits, 120v outlets, inverters, the grid, or even batteries. This article is meant to guide you with a high level orientation to wire size (also referred to as wire gauge) selection. If you understand the core principles of van wire selection, you're on your way to make your campervan electrical system design decisions safely and with confidence.

Wires move electricity from one component to another. For our purposes, we will refer to the electricity moving through a wire as current. Not every wire in your van's electrical system is going to move the same amount of current. A refrigerator requires a higher current than a lightbulb, for instance.

Current is measured in amps. So every wire in our system must be sized large enough to safely carry the expected amount of amps. What happens if the wire is sized too small? If you pass too many amps through too small a wire, the wire will heat up and cause a fire.

Taking the time to size our wires prevents this. So before you begin purchasing wire for your van build, you must first understand how many amps will be moving between your components. If you know the wattage of a device and the voltage powering it, simply divide the watts by the voltage. So in a device that draws 120 watts off a 12V battery bank, the wire will have to be large enough to handle at least 10 amps (120/12 = 10).

Once you calculate the amperage moving between all your components, you need to determine the length of the wires connecting them. It helps to draw out a wire diagram as you go through this process. It can be a lot to keep track of.

If the wire running from the solar panel to the solar charge controller is 20 feet, then the length we use to determine our wire size is forty feet, since there are two wires (positive and negative) connecting the solar panel to the solar charge controller.

In addition to this, there are derating factors to consider. Derating values are correction factors that help us account for the influence of heat. For example, according to the National Electrical Code Table 310.15(B)(3)(a), if you have 8 wires bundled together, the allowable maximum current a wire can safely carry must be multiplied by 0.70. So a wire that would normally carry 25 amps safely, when bundled in a group of 8 where heat is less likely to dissipate, can only safely carry 17.5 amps (25 * 0.70 = 17.5). This means a larger diameter wire would be required to safely carry the expected amperage.

National Electrical Code Table 310.15(B)(3)(a) and Table 310.15(B)(2)(a) are relevant here, and provide derating factors for ambient temperature and wire bundling.

Energy is lost as it passes through a wire. This is something that must be considered when sizing wires. The energy lost is referred to as voltage drop. As a rule of thumb, we recommend sizing your wires for a 3% voltage drop. This simply means the wire is sized so that we won’t lose much power along the length of the wire run. If you pay for solar panels but experience excessive voltage drop along the wire run, you aren’t able to harvest that lost power. So you’re wasting your equipment’s potential—and your money.

In addition to the differences in diameter, or gauge, which can be sold as AWG (American Wire Gauge) or you may see referenced in millimeters squared, or the cross-sectional area of copper. Wires can be made of solid strand copper or multi-strand copper.

Wires can also be made from aluminum. Not only this, but the insulation over a wire differs drastically. For van's we recommend multi-strand copper, as it's less likely to snap completely due to vibration. And we've found that the challenges faced by DIY camper van electrical systems are similar to those in boating, so we recommend marine grade wire, as its often tin coated to help with corrosion. Just keep these in mind as we look at an example of a wire sizing chart.

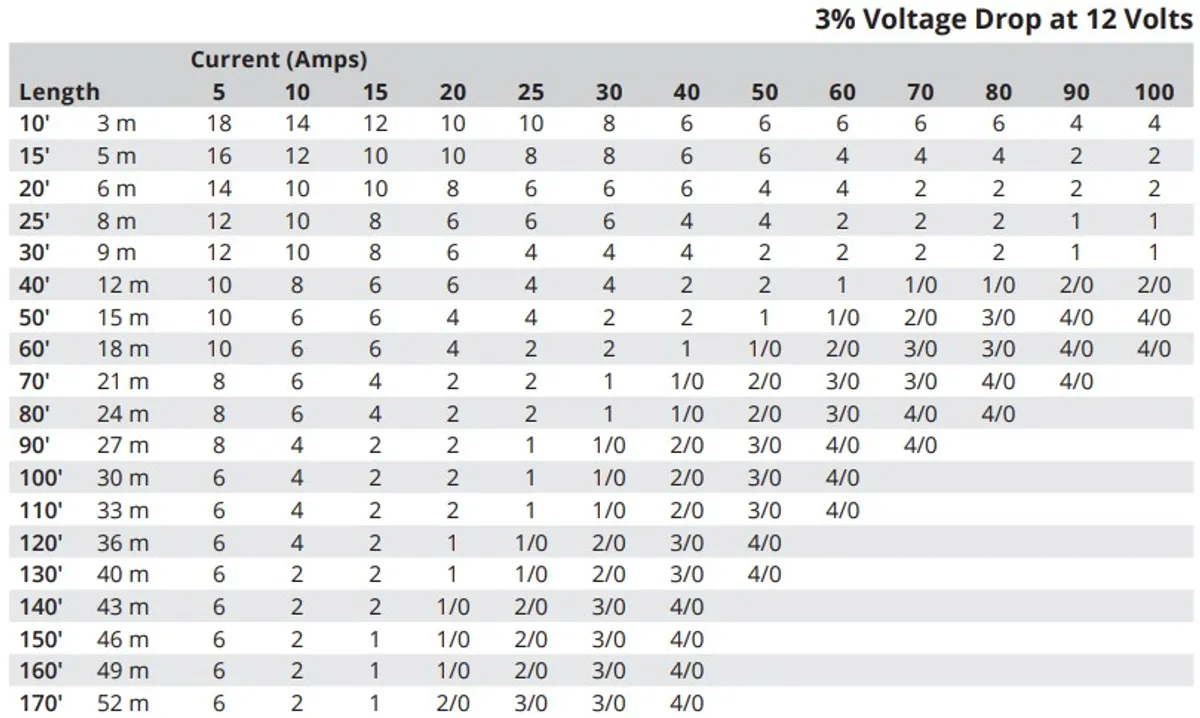

The below wire sizing chart is made available by the marine wire manufacturer Ancor. Ancor knows the wires have an insulator rated to 105 degrees Celsius and that the wire is made from multi-strand tinned copper, so the chart accounts for these. Generic charts or online calculators might ask you these details, which is why we mentioned them in Principle 4.

As you can see on the top right of this chart, the wire size recommendations are only relevant for 3% voltage drop in 12 Volt electrical systems. Disclaimer: It could be dangerous to use this chart for a 24V or 110V system.

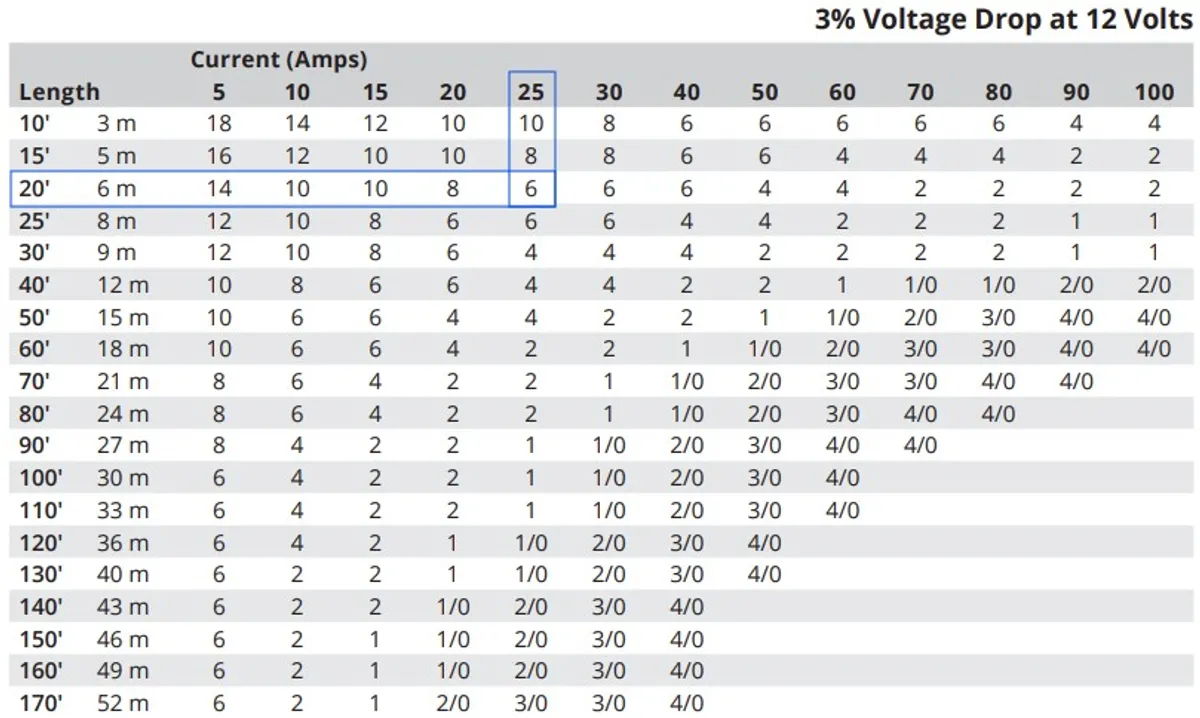

If we know the wire run is 20 feet and the amperage running between the components is 25 Amps, we locate these rows and columns and find where they intersect to get the appropriate wire size, in this case the diameter is reported in AWG.

As you can see, the 20-foot length row intersects with the 25 Amp column at the value of 6 AWG. So we know that our wire needs to be sized as 6 AWG.

Check out our solar power calculator, where you can select a desired solar panel size from a drop-down menu and our calculator provides wire and fuse size recommendations. This is great information for planning out your camper van electrical component purchases or even if you're just considering an electrical upgrade on an existing build.

And if you're unsure of how big your battery bank needs to be, take a look at our energy demand calculator. This calculator helps you determine how much energy you'll use in a day.
